45,000 Liters Aluminum Tank Trailer



Type: 45,000 liter aluminum fuel tanker trailers

Price Range: $20,900-34,500

Delivery: 7-25 days

Material: aluminum

Applications: transport petrol, gasoline, liquid


An aluminum tank trailer is known as an aluminum tanker trailer, aluminum tanker. The aluminum tank trailer is composed of a tank body, power take-off, driveshaft, gear oil pump, pipe network system, and other components. The pipe network system is composed of an oil pump, three-way four-position ball valve, two-way ball valve, a strainer, and pipeline.

An aluminum tanker trailer is generally used in countries with limited weight. If the weight of the tank is reduced, the weight of the load can be increased.

45,000 Liters aluminum tank trailer specifications

 Manufacturer  Panda Mech
 Item  45000 liters aluminum fuel tanker trailer
 Dimension  10500*2500*3500 mm (Reference, customized according to needs)
 Capacity  45,000 liters
 Compartment  6 compartments
 Payload  39-41T (Reference)
 Fuel Tank trailer weight  6.5-9T
 Material  aluminum
 Chassis  High Strength aluminum
 Valve  Civacon, EMCO, HELI, JLME, HENGE
 Axle  3 axle; BPW, FUWA, L1, HO’S, SAF, PDME
 Suspension  Air suspension, mechanical
 Brake system  Dual Line brake system, T30/30 Chamber, Wabco emergency valve, ABS/EBS optional
 Fuel Tanker Trailer  Parts  Mudguard, Ladder, 1 standard toolbox, 1 coat of anticorrosive prime, 2 coats of final paint, Polyurethane paint, Landing gear, 9.0-22.5 steel wheel rim, Fire extinguisher, 4-inch Pneumatic bottom valve, 500mm Aluminum alloy manhole cover, Q345/6mm steel sheet, conforming ADR (According to customer needs)
 Application  Fuel, oil, crude oil, diesel, petrol, petroleum, gasoline

45,000 Liters aluminum tanker trailer images

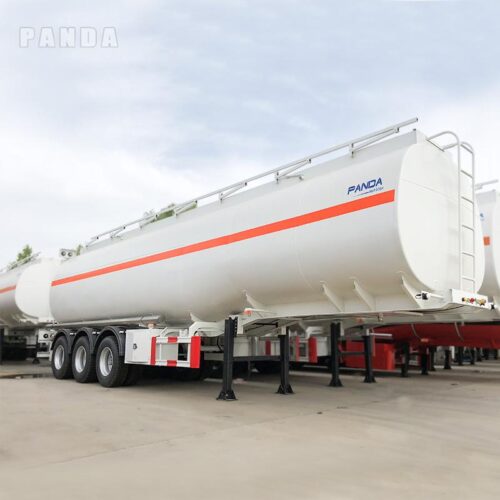

45,000 Liters Aluminum Tank Trailer
aluminum liquid oil transport tanker trailer

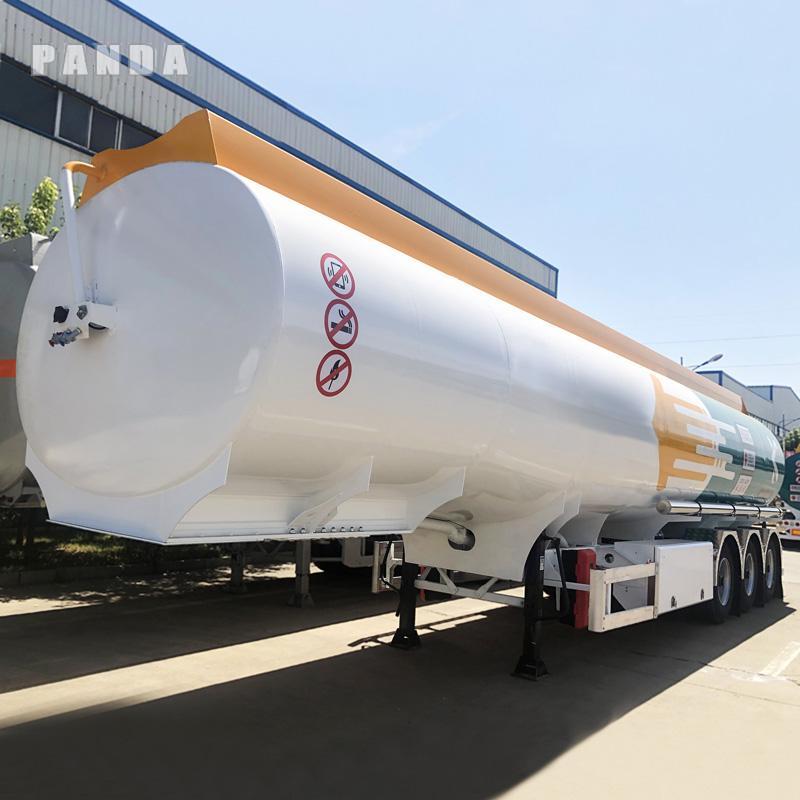

45,000 Liters Aluminum Tank Trailer
tri axle aluminum fuel tanker semi trailer
45,000 Liters Aluminum Tank Trailer
tri axle aluminum fuel tank semi trailer


Aluminum fuel tank trailer is generally used to transport gasoline, kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar, and non-petroleum products such as alcohol, aldehyde, benzene, ether, and other liquid substances.

The aluminum fuel tank trailer has a capacity of 30000-60000 liters, which is generally used for long-distance transportation, transporting liquid substances all over the world, so as to realize the reasonable distribution and use of resources.


1. 3D Drawing and HyperMesh & Ansys

Fully utilize physical property, support higher performance, reducing operating cost

2. ADR standard API Adaptor

Crucial to any API bottom loading system, match 3″ or 4″ couplers

3. API Sockets Optic

Support bottom loading system

4. ADR standard Manhole with vapor vent

16″ or 20″, Aluminum material for a longer lifetime

5. More safety by 7%Lower center gravity Gooseneck design

6. 12% Larger volume by semi-elliptical section barrel design

7. Long service life by tanker automatic arc welding

Sea transportation of fuel tanker trailer

In order to prevent the paint of the fuel tanker truck trailer from being corroded by seawater, we will spray a layer of wax on the surface of the fuel tanker trailer before transportation.
