China Shandong Panda Mechanical CO. LTD

Wing Van Trailer

tobacco and items that need to be properly protected. Can choose side curtain type, convertible type, wing type, refrigerated type according to customer requirements.

Wing open trailer images

Howo wing van truck

Howo wing van truck

2 axle 30ft wing van truck trailer

2 axle 30ft wing van truck trailer

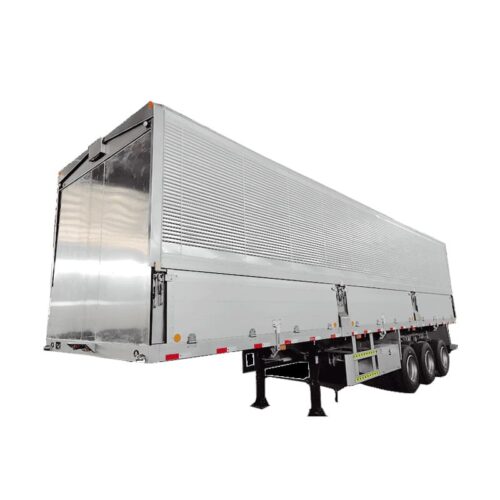

3 axle 40ft wing van trailer

3 axle 40 ft wing van trailer

Wing van semi trailer specification

 Brand  Panda Mech
 Tare weight (kg)  9500
 Payload (kg)  35000
 GVW (kg)  44500
 Length (mm)  13000
 Width (mm)  2550
 Height (mm)  2440
 Other dimension  Available
 Van plate  Thickness 1.5 mm, Corrugated sheet
 Van box top  Closed
 Hydraulic system  Chinese brand
 Kingpin  2″ or 3.5″, bolt-in type
 Suspension  Mechanical suspension
 Axle  13ton, 3 axle
 Landing gear  28ton, Single-side Operation
 Tires  12R22.5, 12+1 pcs
 Spare Tire Carrier  2 pcs
 Color  Can be customized
Inquiry Now Get Quotation Now



Panda wing van semi-trailer advantage

  • 1. Double rear doors allow you to load and unload cargo in the traditional way, while wing-type left and right side doors allow you to get in and out of products faster and easier.
  • 2. The wing-shaped side door is made of 100% aluminum and is the lightest wing-shaped van on the market. The double-acting side door is raised and lowered in place by the hydraulic system of the safety control box.
  • 3. Chassis: 350Mpa yield strength steel. Main beams are welded automatically by a submerged welding machine.
  • 4. Various box type: Closed box, Open top box, Wing van box, Curtain side box.



Wing van truck trailer manufacturer

Panda Mech is a wing van truck trailer manufacturer from China. We supply wing van trucks for sale. We can customize it according to your needs.
