Aluminum Wing Van Truck

5/5
5.0 based on 26 ratings and reviews

Type: 40Ft aluminum wing van trailer

Price Range: Determined by specific configurations

Delivery: 7-25 days

Payload: 35,000 kg

Axle and suspension: 13/16/20 ton BPW, FUWA axle, with leaf spring

Description

Wing van truck trailer is a fully enclosed trailer, which is widely used for valuables such as electronic products, wine, tobacco and items that need to be properly protected. Can choose side curtain type, convertible type, wing type, refrigerated type according to customer requirements.

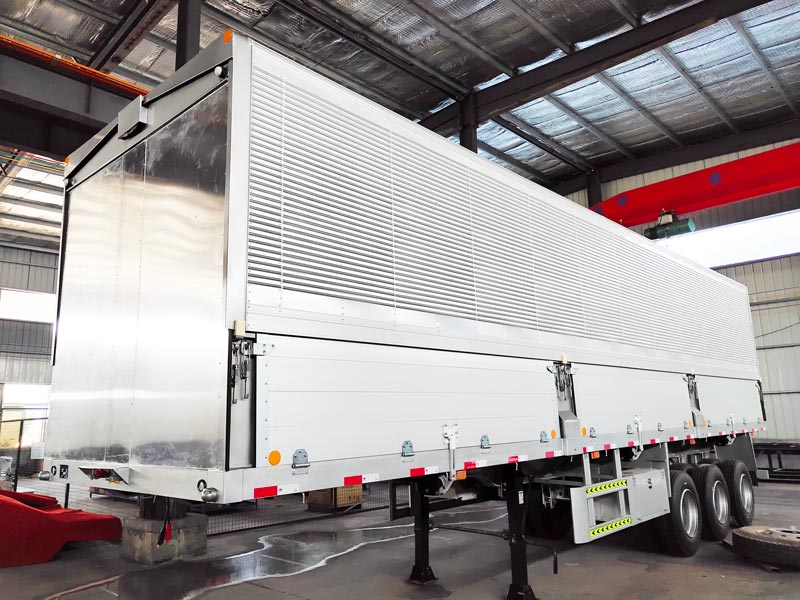

40 Ft aluminum wing van truck

40ft aluminum wing van truck

Aluminum wing van trailer specification

 Brand  Panda Mech wing van truck
 Tare weight (kg)  8500
 Payload (kg)  30,000
 GVW (kg)  42000
 Length (mm)  12500
 Width (mm)  2550
 Height (mm)  3900
 Other dimension  Available
 Van plate  Thickness 1.5 mm, Corrugated sheet
 Van box top  Closed
 Hydraulic system  Chinese brand
 Kingpin  2″ or 3.5″, bolt-in type
 Suspension  Mechanical suspension
 Axle  13ton, 3 axle
 Landing gear  28ton, Single-side Operation
 Tires  12R22.5, 12+1 pcs
 Spare Tire Carrier  2 pcs
 Color  Can be customized
Inquiry Now Get Quotation Now

Panda wing van truck advantage

1. Double rear doors allow you to load and unload cargo in the traditional way, while wing-type left and right side doors allow you to get in and out of products faster and easier.

2. The wing-shaped side door is made of 100% aluminum and is the lightest wing-shaped van on the market. The double-acting side door is raised and lowered in place by the hydraulic system of the safety control box.

3. Chassis: 350Mpa yield strength steel. Main beams are welded automatically by submerged welding machine.

4. Various box type : Closed box, Open top box, Wing van box, Curtain side box.

2 Axle wing open box van trailers for sale

We are a 2 axle wing van trailer supplier from China. We supply aluminum wing van trailers for sale. We can customize it according to your needs. The wing van trailer price depends on specifications.

PANDA engineering team will be ready to provide you with a set of well-integrated solutions that meets your transportation needs and also your local regulations. The PANDA engineering team can communicate with you online to fully understand your needs, the solutions include the product design, product material, product drawings, product videos.

Panda Mech manufacturers have been successful in Southeast Asia, the Middle East, Africa, and South America, such as the Philippines, Tanzania, etc….  More about panda

wing open box van trailer factory for sale
