40 Ft Yard Trailer Chassis

$8,600.00

5/5

Type: 40ft yard chassis trailer

Price Range: $8600-16500

Delivery: 7-25 days

Max loading capacity: 65 ton

Applications: transport container

Description

Terminal chassis trailer, also called as terminal container transport truck, yard trailer chassis. Terminal semi trailer is used in many areas, Middle East, Africa, and Southeast Asia (such as Philippines, Kenya, Indonesia, etc.). It is manufactured and designed to transport containers at the terminal, and the main container sizes include 20 feet, 40ft and 45 foot.

40Ft terminal chassis trailer specifications

Dimension(mm): 12613*2810*1508mm

Loading capacity(ton): 65T

Axles: 2 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 9 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

King Pin: 2.0 or 3.5 inch

Landing Gear:?D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material: Q345B steel

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand)

Click For Detail

40 Feet terminal chassis trailer drawing

40 footer port terminal skeletal trailer drawing

ISO container payloads

  • 2 ?C 20 ISO Container (Twin-20)
  • 1 ?C 40 ISO Container

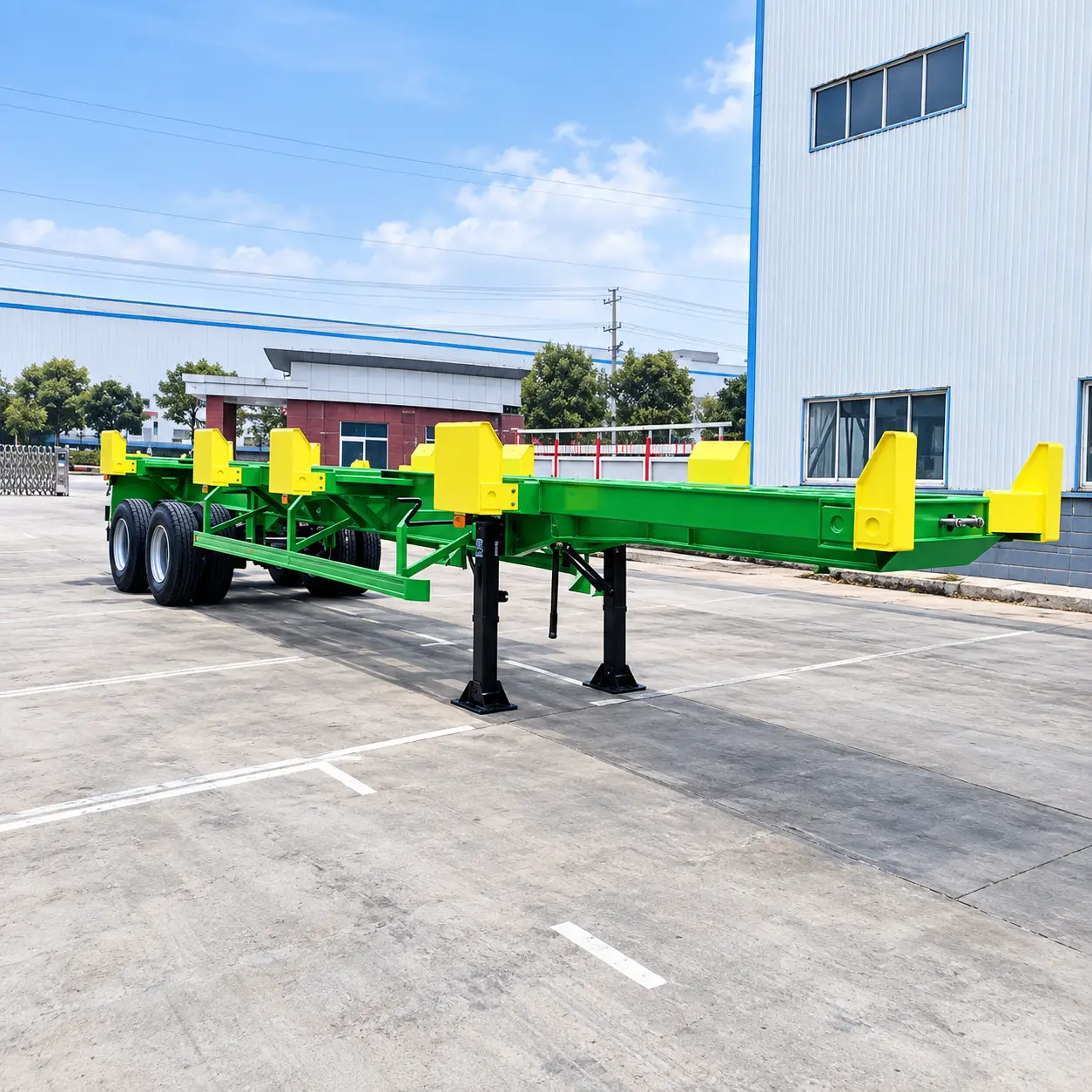

40 ft terminal chassis trailer images

40ft-bomb-cart-trailer7

2 axle 40 ft port shipping container chassis trailer for sale

40ft-port-cart-chassis-trailer8

40ft port chassis trailers for sale

Related: container chassis trailer

Click For Solution

Bomb cart chassis application

This heavy-duty 140,000 lb capacity terminal chassis trailer is designed to take the high-impact loads seen in a ship-to-shore port application. The 70,000 lb single point suspension and deep I-Beam frame have been engineered to handle the weight of the container payload and the spreader and head block.

Panda Mech

Panda Mech is a 40ft yard trailer chassis manufacturer from China. We supply 40ft/45′ yard trailer chassis for sale. PANDA MECH manufacturers have been successful in Southeast Asia, the Middle East, Africa, and South America, such as the Philippines, Tanzania, etc…
