20 Ft Drop Frame ISO Tank Chassis
$7,200.00
Type: 20 Ft Drop Frame ISO Tank Chassis for sale
Price Range: $7,200-14,600
Delivery: 7-25 days
Application: transport ISO tank, container
Description
Drop Frame ISO Tank Chassis are generally custom built to size, with common tank container chassis available in 20ft and 40 foot. the gooseneck design allows for a lower center of gravity, more stability and safety when transporting cargo.
20 Feet Drop frame iso tank chassis video
20Ft Drop Frame ISO Tank Chassis specification
| Main Beam | “I” Section 500mm height Q345/T700 material |
| Twist-Lock | 4/8 set ISO Standard |
| Suspension | Mechanical / Air / Bogie |
| Axle | 3 axles BPW/FUWA/PDME etc |
| Rim | 8/12 pieces 9.0-22.5 Steel/Aluminum |
| Tire | 8/12 pieces 12R22.5 Bridgestone/Triangle/Linglong etc |
| Brake Pipe | Nylon Wire Pipe |
| Landing Gear | 28T Lifting JOST/YAHUA |
| Kingpin | 2″(50mm)/3.5″(90mm) JOST Bolting Type |
| Lights | 12v/24v LED Waterproof |
Drawing of 20 foot Drop Frame ISO Tank Chassis

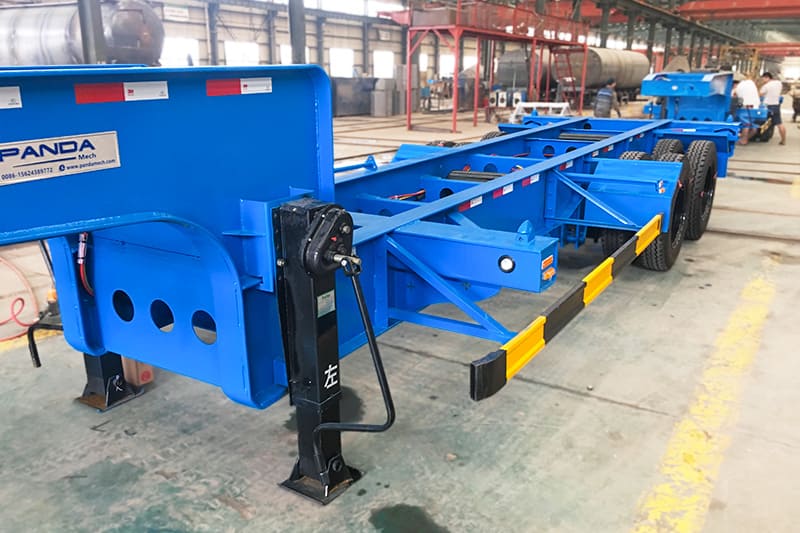

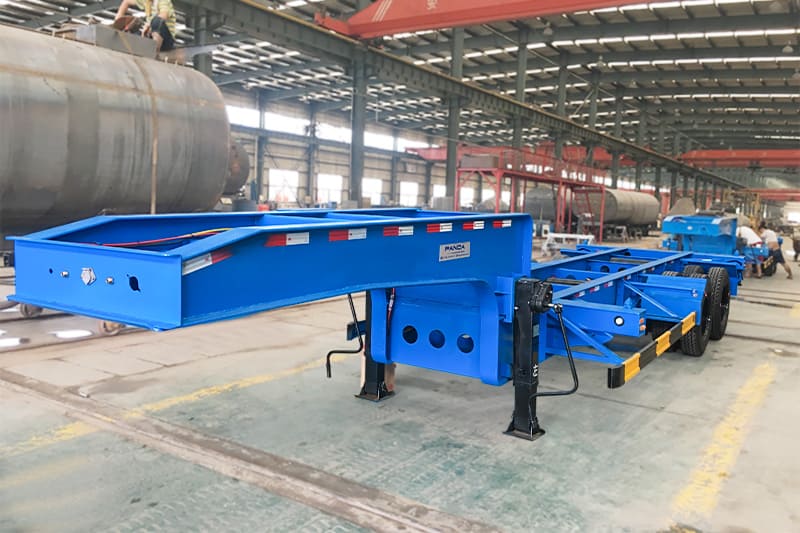

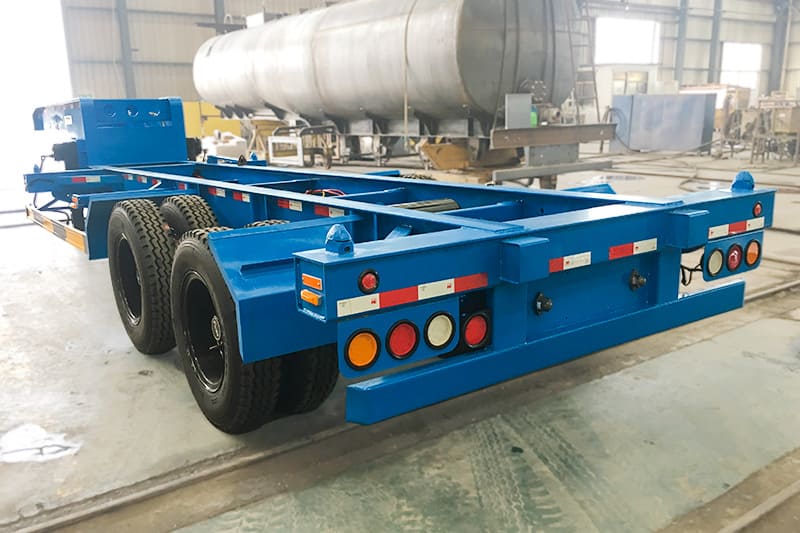

20ft Drop Frame ISO Tank Chassis image
20′ intermodal container chassis trailers for sale
20ft drop frame container chassis for sale
20ft gooseneck container chassis trailer for sale
Transport of Drop Frame ISO Tank Chassis
Drop frame iso tank chassis trailer are more suitable for iso container transportation, cost saving and fast delivery.
terminal ISO tank container chassis trailers transport
Panda Mech
Panda Mech is China’s 20ft drop frame container chassis-trailer manufacturer. We supply 20ft Drop deck ISO Tank Chassiss for sale. PANDA MECH manufacturers have been successful in Southeast Asia, the Middle East, Africa, and South America, such as the Philippines, Tanzania, etc…
Get Latest Price and Detail
